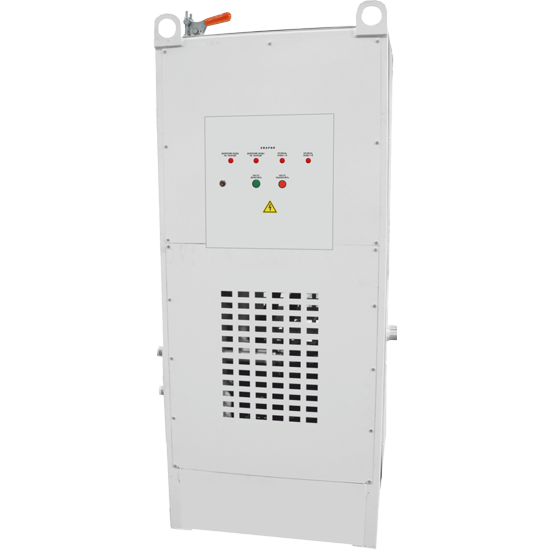

Cooling station "STO-40"
Cooling station "STO-40"
Description

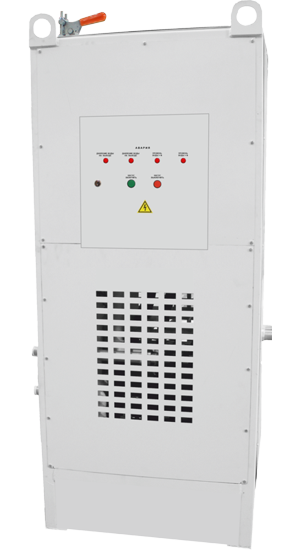

Cooling station "STO-40" for cooling of thyristor frequency converters and other process equipment
The STO-40 cooling station is designed for cooling of thyristor frequency converters and other process equipment using a dual-circuit water/water system.
The inner closed circuit is filled with distilled water, circulated by a pump mounted on the cooling station frame.
The outer circuit circulates process water, which cools the heat exchanger in the station's internal tank.
The inner closed circuit is filled with distilled water, circulated by a pump mounted on the cooling station frame.
The outer circuit circulates process water, which cools the heat exchanger in the station's internal tank.
Technical data
Heat loss removal capacity, kW
40
Nominal process water flow rate, m3/hour
8.0
Distilled water flow rate of the internal circuit, m3/hour
6.0
Internal circuit capacity, m3
0.24
Maximal permissible temperature of distilled water in the internal circuit at the heat exchanger outlet, °С
+30
Maximal permissible temperature of process water in the external circuit at the heat exchanger inlet, °С
+25
Permissible operating pressure limits for process water, MPa
0.25 - 0.4
Power supply three-phase AC, V
400
Frequency, Hz
50
Total power consumption, kW
2.2
Overall dimensions (L*W*H), mm
800*720*1875
Weight, kg
140
