Description

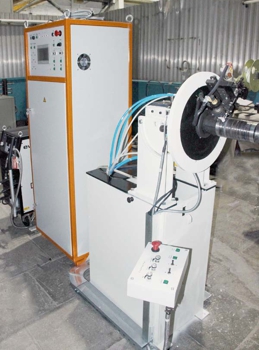

Plant "UST-9M" for welding fittings to pipelines

Purpose.

The "UST-9M" unit is designed for welding fittings to pipelines in a protective gas environment - argon, helium, with a non-consumable electrode with filler wire. Pipe material - aluminum, titanium, steel. The pipe is fixed in a non-rotating position. The welded joint can be located vertically and horizontally. Welding is performed with the supply of filler wire. The angle of inclination of the welding head changes depending on the spatial position of the torch. The value of the welding current changes according to a specified program.



Unit composition:

- Welding head,

- Manipulator,

- Frame,

- Control cabinet,

- Tripod,

- Gas and electrical distribution,

- Equipment,

- Control panel,

- AC power source.

The "UST-9M" unit is equipped with a "VSVU-400" rectifier or an "ISVU-400" AC power source.



The unit allows tacking during welding.

The executive element of the unit is the welding head, which performs adjustment and working movements of the torch.

The manipulator consists of a rotator mounted on two supports, which are fixed on the frame. The manipulator allows welding pipelines with the location of the plane of the welded joint within the range from horizontal to vertical.

The rotator contains a welding head, a pneumatic cylinder, a manifold for supplying protective gas to the torch and a reducer designed to rotate the faceplate.

Ten cams are evenly distributed around the circumference of the faceplate, which alternately press two microswitches located on the brackets. Welding is performed only when the microswitch is closed.



The tripod is designed to maintain the welded product in the required position.



The equipment ensures fastening of the part and protection of the inner side of the weld. The equipment fixes the welded product with collets of the appropriate diameter using a pneumatic cylinder.



Technical data

Supply voltage with a frequency of 50 ± 1 Hz, V
400/230
Rated welding current (PV=60%), A
200
Power consumption, kW
23
Diameters of welded pipelines, mm
20 - 200
Pipeline wall thickness, mm
12
Diameter of tungsten electrode, mm
2 - 4
Welding speed, m/h
4 - 24
Filler wire feed speed, m/h
8 - 80
Filler wire diameter, mm
0.8 - 2
Axial force of the pneumatic cylinder, kg up to
500
Type of welding current
alternating, direct in continuous and pulse modes
Rectifier used
VSVU-400 or ISVU-400
Overall dimensions, mm
2550*600*2000
Weight, kg
1130
