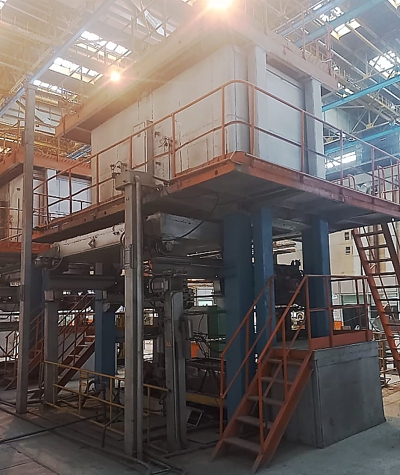

Unit for heat treatment of products made of aluminum alloys “ETA-2S”

Unit for heat treatment of products made of aluminum alloys “ETA-2S”

Description

Unit "ETA-2S" for hardening, annealing and aging of products made of aluminum alloys

Detailed information PDF
1. Purpose of the equipment. Used technological processes.
The electrothermal unit “ETA-2S” intended for heat treatment of parts made of aluminum and its alloys. Three types of heat treatment available for the unit:
- hardening: heating temperature 460-550°C;
- aging: heating temperature 120-200°C;
- annealing: heating temperature 310-450°C.

The charge of parts for heat treatment enters in the heating chamber of the electrothermal unit “ETA-2S”. Resistance heaters warm the air. Heating of parts is carried out because of the circulation of heated air created by a fan.
Loading the charge into the furnace occurs as follows: in the end position, the traverse with the charge is installed on the buckets of the loading mechanism. The loading mechanism with the charge moves to the middle position. Heaters and fans turn off. Hearth does push-ups and rolls away. The winch lowers the booms to the middle position. The loading mechanism moves to the left end position under the furnace, and the rods are grabbed. The winch moves the traverse with the charge into the furnace. Hearth moves and presses. Heaters and fans turn on. The cage is heated, the buckets of the loading mechanism are in the lower position. After heating is completed, the fans and heaters are turned off, the bottom is wrung out and rolled away, and the winch lowers the traverse with the cage into the bath. The bubbler turns on. The winch lifts the rods, moves under and tightens. After hardening, jacks with buckets of the loading mechanism lift the traverse with the charge from the bath. The loading mechanism with the charge is moved by a chain drive to the loading and unloading area. The traverse with the cage is removed by a workshop lifting device and another cage is installed for the next cycle.

2. Features of the physical processes used.
The “ETA-2S” plant uses the processes of hardening, annealing, and aging of metal products.
Hardening - heating of a part to a temperature above the critical point and then rapidly cooling it. Hardening of alloys makes the surface layer harder, increases strength, and reduces ductility.
Annealing is heating of a part above a critical temperature and then slowly cooling it. Annealing changes the structure of the alloy, reduces hardness, imparts ductility and toughness, and eliminates internal stresses.
Aging is a heat treatment in which the main process is the decomposition of a supersaturated solid solution. Hardened alloys change own properties because of aging. Unlike annealing, the strength and hardness increase, and ductility decreases, strength increases and properties stabilize after aging.

3. Technical description. Design features. Advantages.

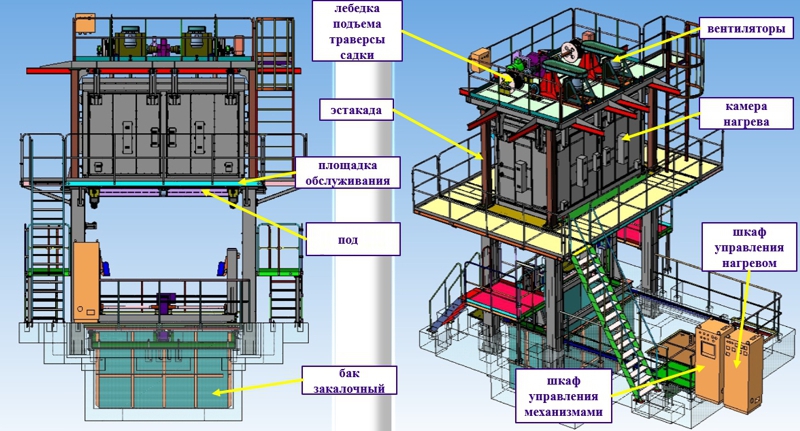

Plant design:
- Heating chamber;
- Sliding hearth;
- Furnace bottom pressing mechanism;
- Hardening tank;
- Mechanism for loading cages;
- Fans;
- Winch;
- Cooling system;
- Control system.

3.1. Heating chamber
The heating chamber consists of separate sections connected to each other: two side, two end and top. Each section consists of heat-insulating frames - internal and external. Heating elements are placed on the inner frame. The total power of the heating elements is 120 kW. All electric heaters "ETA-2S" are divided into 12 groups. The leads of the heating elements pass through the thermal insulation to the outer panels.
The heating elements are covered with metal screens, which are mounted on brackets in the internal sections. The circulated air is heated in the space between the heaters and screens. Air circulation is carried out from two centrifugal fans installed on a separate platform on top of the furnace.
Air moves from top to bottom.
If the set temperature of the furnace deviates, thermocouples give a signal to turn off or turn on individual electrical groups of heaters. 12 control thermocouples are installed near the working thermocouples.
The furnace is installed on a power support frame, which in turn is installed on 4 metal columns.

3.2 Sliding hearth
Sliding hearth is designed to close and seal the working space of the furnace working opening. Sliding hearth it has a rectangular shape. The basis is a welded hearth frame. The internal cavity of the frame is filled with heat-insulating material - slabs and mineral wool, between which metal foil is laid. To ensure sealing when the hearth is pressed against the working opening of the furnace, an asbestos cord is placed in a special recess along the entire perimeter of the frame.
Four wheels are mounted on the frame to allow the hearth to move. The two drive wheels have an electromechanical drive. The drives of both wheels are turned on simultaneously.
3.3 Furnace bottom pressing mechanism
The furnace hearth pressing mechanism is designed to tightly press the hearth to the furnace and ensure sealing of the furnace working opening. The furnace bottom pressing mechanism consists of a beam on which the carriage drive mechanism and two carriages are mounted. The carriage drive, in turn, consists of an electric motor, a gearbox, two screws and a cylindrical gear.
The mechanism works according to the following principle: the carriage drives are turned on, the screws begin to rotate, causing the carriages to move. The carriages come closer together, while the upper frames of the carriages slide along the inclined plane of the beams on which they are installed under the furnaces, pressing the beams and thereby pressing the hearth. The unit has two hearth pressing mechanisms mounted on columns. The drives of these mechanisms are turned on simultaneously.
3.4 Quenching tank
The hardening tank designed for rapid cooling of parts in water during the hardening process. The tank is a rectangular container, welded from sheets and reinforced with rolled profiles. At the bottom of the tank there is a bubbler that serves to mix the water with air. The tank has an overflow pipe to drain excess water when the cage is immersed in it.
3.5 Cage loading mechanism
The charge loading mechanism designed to move the charge from the loading area under the furnace and back. The loading mechanism is moved using a chain transmission from an electromechanical drive. The loading mechanism consists of a frame that mounted on wheels. An electromechanical drive installed on the frame for two screw mechanisms with buckets for installing a traverse with a cage.
3.6 Fans
Fans designed to create air circulation inside the oven. The fan consists of a housing in which a shaft is mounted on rolling bearings, on which the impeller is mounted. The electric motor rotates the impeller through a belt drive. The unit has two fans.
3.7 Winch
The winch is used to raise and lower the traverse with the cage. The winch consists of an electric motor, brake, gearbox, two chain drums and rods.
3.8 Cooling system
There are 3 cooling options available:
a) inside the furnace with the heaters turned off and the furnace bottom closed;
b) on the air - it opens under the furnace, the winch lowers the traverse with the load onto the buckets of the loading mechanism;
c) in water, when the cage is immersed in the quenching tank.
3.9 Control system
The control system based on modern computer technology and integrates the entire flow of information. The control system ensures operation of the unit in three modes: manual control, programming, and automated mode.
In case of violations and deviations from the technological process, there is a light and sound alarm. The automated control system of the “ETA-2S” plant ensures strict implementation of the technology.

Technical data

Maximal temperature, °C
550
Dimensions of the internal space of the furnace (L*W*H), mm
3080*1080*1550
Cage weight, kg
250
Maximal dimensions of processed products (L*W*H), mm
2000*700*700
Unit heater power, kW
120
Working volume of the water tank, m3
9
Number of heating zones
12
Heating time to maximum temperature, hours
1
Heat flow through the wall of the working chamber, W/m
1900
Unit dimensions (LxWxH), mm
7460*6260*7040
Weight, kg
40250
